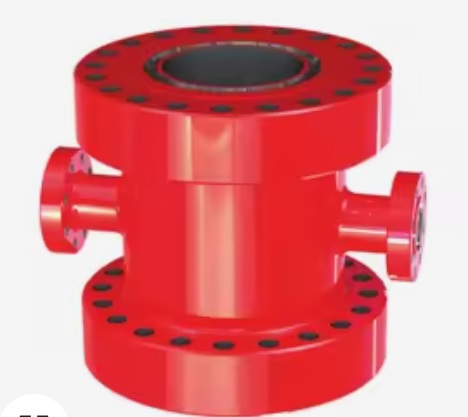

API 16A Drilling Spool

Drilling spool is vital components used in drilling operations to provide a connection between different wellhead components. They are designed to withstand high pressure and temperature conditions during drilling, completion, and production operations in the oil and gas industry.

API 16A Drilling Spool

Working Principle

The primary function of drilling spools is to provide a safe and reliable connection between different wellhead components. Drilling spools are installed between the components to create a sealed path for the flow of fluids. They come in different sizes and configurations, allowing for flexibility in the connection of various components

API 16A Drilling Spool.

Product Structure

Key components and features of drilling spools include: 1. Flange Connections: The connection points that allow for the secure installation of the spool between the different components. 2. Side Outlets: Optional outlets on the spool that provide access to the wellbore for ancillary equipment or testing purposes. 3. Bore Size: The diameter of the spool's central bore that allows for the flow of fluids. 4. Material: Made of high-strength steel to withstand high pressures and temperatures.

API 16A Drilling Spool

Specification
