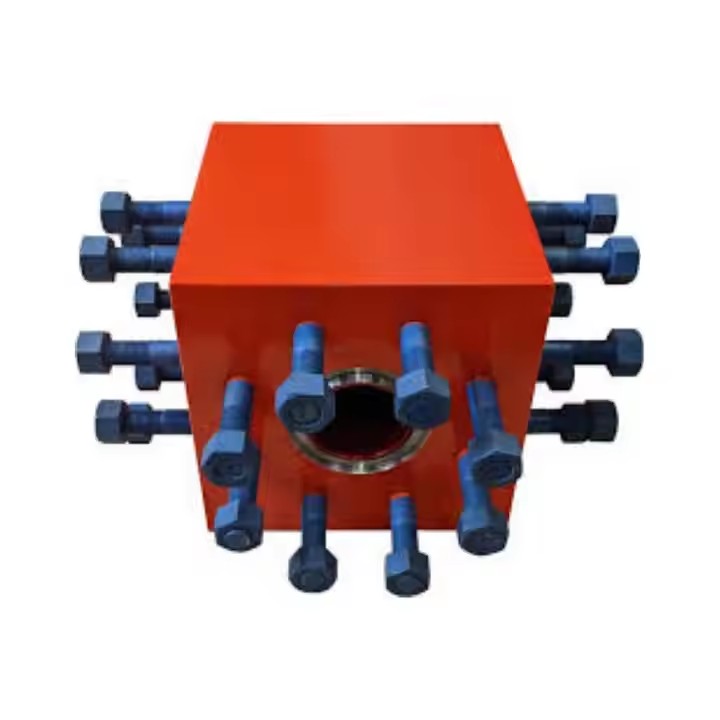

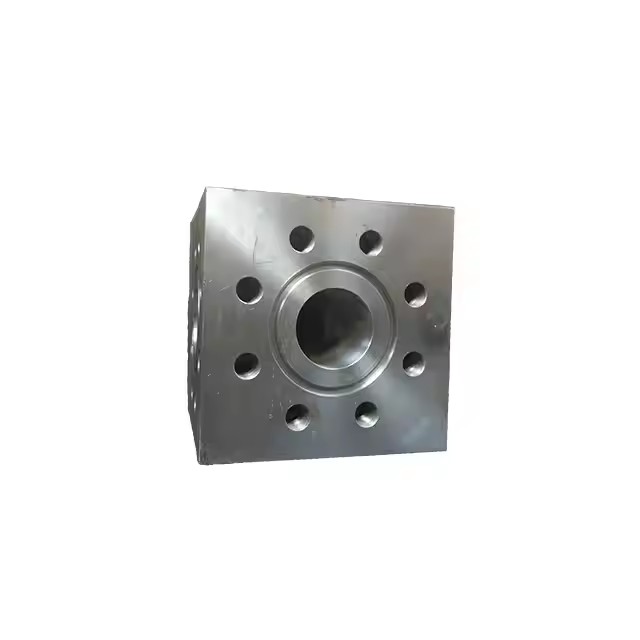

API 6A  Studded block or Studded Cross

API 6A  Studded Tee and Studded Cross  are very important components for wellhead assembly christmas tree. They are assembled on the X-max tree where an angled connection is required. They are made from solid metal block. Boundary dimensions-bore and centerline-to-face dimension shall conform to API 6A standard. Common configurations include 4 way, 5 way, and 6 way crosses along with ells and trees with pressure ratings from 2000 to 20000 psi.

API 6A  Studded block or Studded Cross, API 6A  Studded Tee and Studded Cross   Features:

1.The basic material is usually AISI 4130 Alloy Steel or AISI 410 Stainless Steel.

2.Overlays like SS 316L or inconel 625 on ring groove can be incorporated for corrosion resistance.

3.Studded / Flanged crosses and tees shall undergo hydrostatic body test and drift test as per API 6A standards prior to delivery.

4.Custom sizes and specifications are available upon request.

5.Simple structure with reliable performance

API 6A  Studded block or Studded Cross, API 6A  Studded Tee and Studded Cross  Product Parameter

API 6A  Studded Tee and Studded Cross
